Railway Quarry Small Fine Sand Recycling Machinery 50tph

SG90-1 Small Fine Sand Recovery Machine

Technical Parameters

Model: SG90-1

Processing capacity: 50-70t/h

Vibration power: 2*1.1kw

Pump power: 7.5-11kw

Concentrator: 350mm

Model Technical Parameters
Note: The pump is divided into the vertical pump and horizontal pump, after treatment, solid particles above 200 mesh and solid content 70%-80%.
The treatment capacity (treatability) varies according to the solid content.

Profile

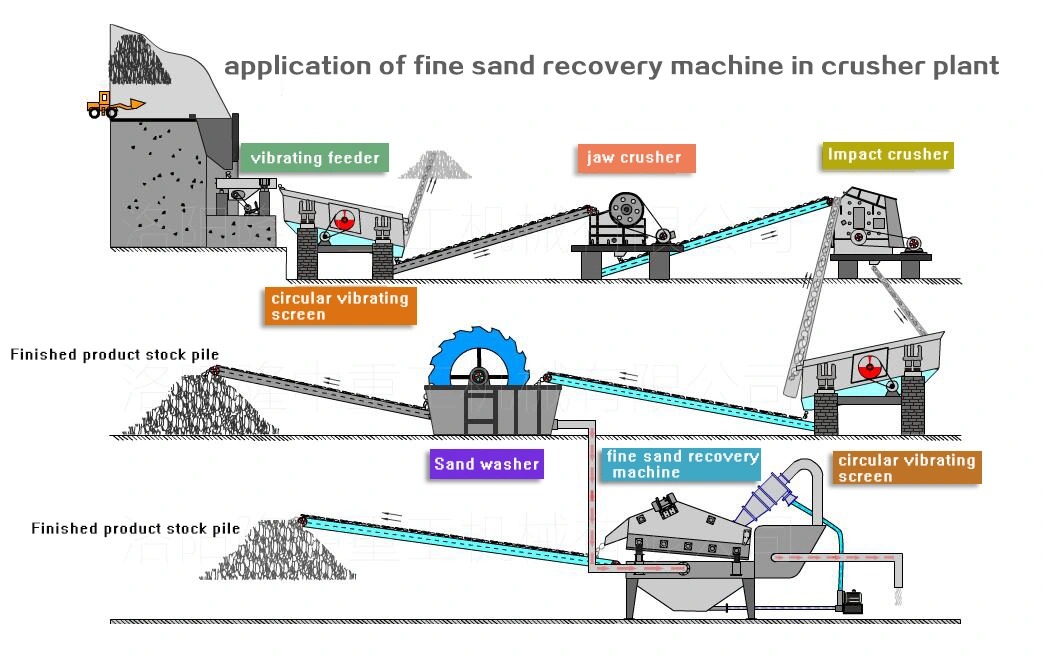

At present, the existing artificial sand production line, large-diameter pile foundation of circular drilling technology, non excavation construction, and seepage proof wall engineering, and large mine tailing slurry, which adopt wet process production technology mostly. No matter what type of treatment, the biggest disadvantage is that fine sand (below 0.16mm particles) is lost seriously, some even more than 20% is lost, which not only loses the output but also seriously affects the gradation of the sand, which causes the unreasonable gradation and coarser the fineness modulus, which greatly reduces the product quality of the mechanism sand. Too much fine sand discharge will also cause environmental pollution. Our factory has successfully developed SG Series in order to solve the above problems such as partial loss of ultrafine sand and artificial sludge pollution refer to mud water can't be treated.

Hydrocyclone is mainly used in mineral processing
1 Heavy-medium cyclone is the common heavy-medium separation equipment.
2 As grading equipment in grinding circuit, especially as grading equipment for fine grinding.
3. Desliming and concentrating ore pulp.
