Brand Name : ZR
Model Number : TS
Place of Origin : Shanghai, China
MOQ : 1 Piece
Price : Price Negotiable
Payment Terms : T/T, L/C, Western Union, MoneyGram
Supply Ability : 1000PCS/Year
Delivery Time : 20-30 days
Packaging Details : Nude Cargo/Pallet/Wooden Case
Type : Linear
Function : High Frequency Vibrating Screen
Transmission Structure : Eccentric Vibrating Screen
Usage : Mine Shaker
Works : Spiral Flash Shaker
Object : Coal Slime, Sand, etc
Shaft Number : Double
Running Track : Linear Vibrating Screen
Supporting Device : Coil Spring
Motor Power : 2*18.5kw
Screen Area : 2400*6000mm2
HS Code : 8474100000
Technical Parameters
Model: TS2460
Processing capacity: 350-400t/h
Vibration power: 2*18.5kw
Screen area: 2400*6000mm2
Parameters
Model | Processing capacity (Ton/h) | Vibration power (KW) | Theoretical weight (KG) | Dimensions (L*W*H)(mm) | Screen area (mm) |
TS90 | 50-70 | 2*1.1 | 1.3 | 2520*1270*2360 | 900*2200 |
TS1025 | 50-70 | 2*1.1 | 1.8 | 2820*1370*2360 | 1000*2500 |
TS1530 | 100-150 | 2*3 | 3.5 | 3600*1980*2852 | 1500*3000 |
TS1842 | 180-200 | 2*3.7 | 4.2 | 4800*2274*2800 | 1800*4200 |
TS2042 | 250-300 | 2*5.5 | 4.3 | 4794*2522*3122 | 2000*4200 |
TS2246 | 250-300 | 2*5.5 | 5 | 4790*2792*3122 | 2200*4600 |
TS2246(double-shaft) | 250-300 | 2*15 | 5 | 4790*2792*3122 | 2200*4600 |
TS2446(double-shaft) | 280-320 | 2*15 | 6 | 4790*2922*3122 | 2400*4600 |
TS2460(double-shaft) | 350-400 | 2*18.5 | 7.2 | 6794*2922*3122 | 2400*6000 |
Profile
Dewatering screen, the main function is dehydration, de-smudging, de-intermediation, can be used for sand washing in sand and gravel plant, coal slurry recovery in the coal preparation plant, dry discharge of tailings in the mineral processing plant, etc., so it is also called sand and stone dewatering sieve, mining dewatering sieve, Slime dewatering screen, tailings dewatering screen, etc.
Advantages and Feature
1. Low noise, easy maintenance
2. Stable structure with strong exciting force
3. High screening efficiency and low noise pollution
4. Light weight, easy to disassemble and replace
5. Stable structure and strong exciting force
Working principle
![]() |

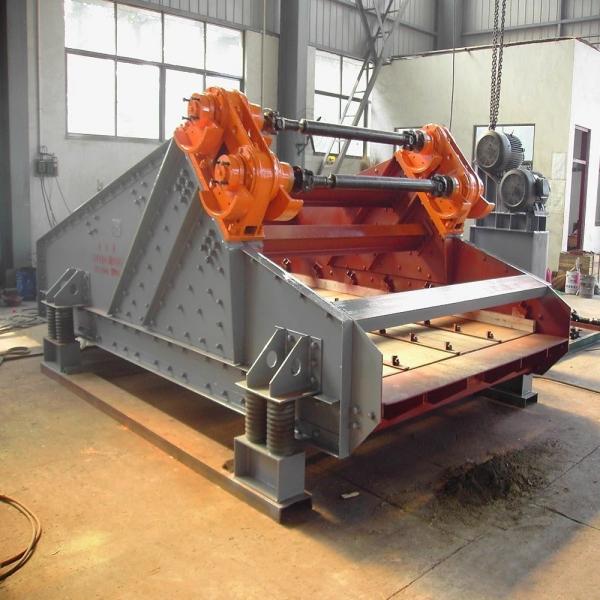

400ton h High Frequency Coal Vibrating Screen Machine Images |
