Brand Name : ZR
Model Number : TS
Place of Origin : Shanghai, China
MOQ : 1 Piece
Price : Price Negotiable
Payment Terms : T/T, L/C, Western Union, MoneyGram
Supply Ability : 1000PCS/Year
Delivery Time : 20-30 days
Packaging Details : Nude Cargo/Pallet/Wooden Case
Type : Linear
Function : High Frequency Vibrating Screen
Transmission Structure : Eccentric Vibrating Screen
Usage : Mine Shaker
Works : Spiral Flash Shaker
Object : Coal Slime, Sand, etc
Shaft Number : Double
Running Track : Linear Vibrating Screen
Supporting Device : Coil Spring
Motor Power : 2*15kw
Screen Area : 2400*4600mm2
HS Code : 8474100000
Technical Parameters
Model: TS2446
Processing capacity: 280-320t/h
Vibration power: 2*15kw
Screen area: 2400*4600mm2
Parameters
Model | Processing capacity (Ton/h) | Vibration power (KW) | Theoretical weight (KG) | Dimensions (L*W*H)(mm) | Screen area (mm) |
TS90 | 50-70 | 2*1.1 | 1.3 | 2520*1270*2360 | 900*2200 |
TS1025 | 50-70 | 2*1.1 | 1.8 | 2820*1370*2360 | 1000*2500 |
TS1530 | 100-150 | 2*3 | 3.5 | 3600*1980*2852 | 1500*3000 |
TS1842 | 180-200 | 2*3.7 | 4.2 | 4800*2274*2800 | 1800*4200 |
TS2042 | 250-300 | 2*5.5 | 4.3 | 4794*2522*3122 | 2000*4200 |
TS2246 | 250-300 | 2*5.5 | 5 | 4790*2792*3122 | 2200*4600 |
TS2246(double-shaft) | 250-300 | 2*15 | 5 | 4790*2792*3122 | 2200*4600 |
TS2446(double-shaft) | 280-320 | 2*15 | 6 | 4790*2922*3122 | 2400*4600 |
TS2460(double-shaft) | 350-400 | 2*18.5 | 7.2 | 6794*2922*3122 | 2400*6000 |
Profile
Dewatering screen, the main function is dehydration, de-smudging, de-intermediation, can be used for sand washing in sand and gravel plant, coal slurry recovery in the coal preparation plant, dry discharge of tailings in the mineral processing plant, etc., so it is also called sand and stone dewatering sieve, mining dewatering sieve, Slime dewatering screen, tailings dewatering screen, etc.
Working principle
![]() |

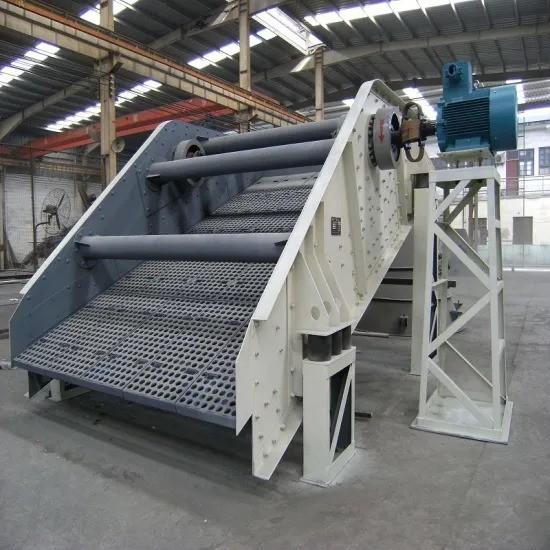

5x12 High Frequency Vibrating Screen Machine Single Deck Large Capacity Images |
