Mobile Compact Trommel Screener Mining

Brand Name : ZR

Model Number : GTS

Place of Origin : Shanghai, China

MOQ : 1 Piece

Price : Price Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 1000PCS/Year

Delivery Time : 20-30 days

Packaging Details : Nude Cargo/Pallet/Wooden Case/Customize

Type : Mineral Processing & Screening Equipment

Material : Carbon Steel

Material Feature : Heat Resistant

Energy Saving : Energy Saving

Production Capacity : 800t/h

Power : 30kw

Diameter : 2200mm

Length : 6500mm

Max Feed Size : 400mm

HS Code : 8474100000

Contact Now

GTS2265 Large Capacity Mining Trommel Screen

Technical Parameters

Model: GTS2265

Production Capacity: 800t/h

Power: 30kw

Diameter: 2200mm

Length: 6500mm

Max feed size: 400mm

Sieve size: 0-100mm

Technical Parameter

Model	Yield (Ton/H)	Power (kw)	Diameter (mm)	Length (mm)	Feed size (mm)	Sieve size (mm)	Dimension LWH(mm)
GTS1015	50	3.0	1000	1500	≤300	0~100	260014001700
GTS1020	100	4.0	1000	2000			339014002140
GTS1225	160	5.5	1200	2500			414616002680
GTS1530	250	7.5	1500	3000			446019002820
GTS1545	350	11	1500	4500	≤400		596019003080
GTS1848	450	15	1800	4800			650023504000
GTS2055	600	22	2000	5500			750025504800
GTS2265	800	30	2200	6500			850027505000

Descriptions

Representing a new generation of sieving equipment, the trommel screen has effectively overcome the blocking problems of the circular and linear vibrating screen when screening the wet materials, which has improved the productivity and reliability of the whole screening process.

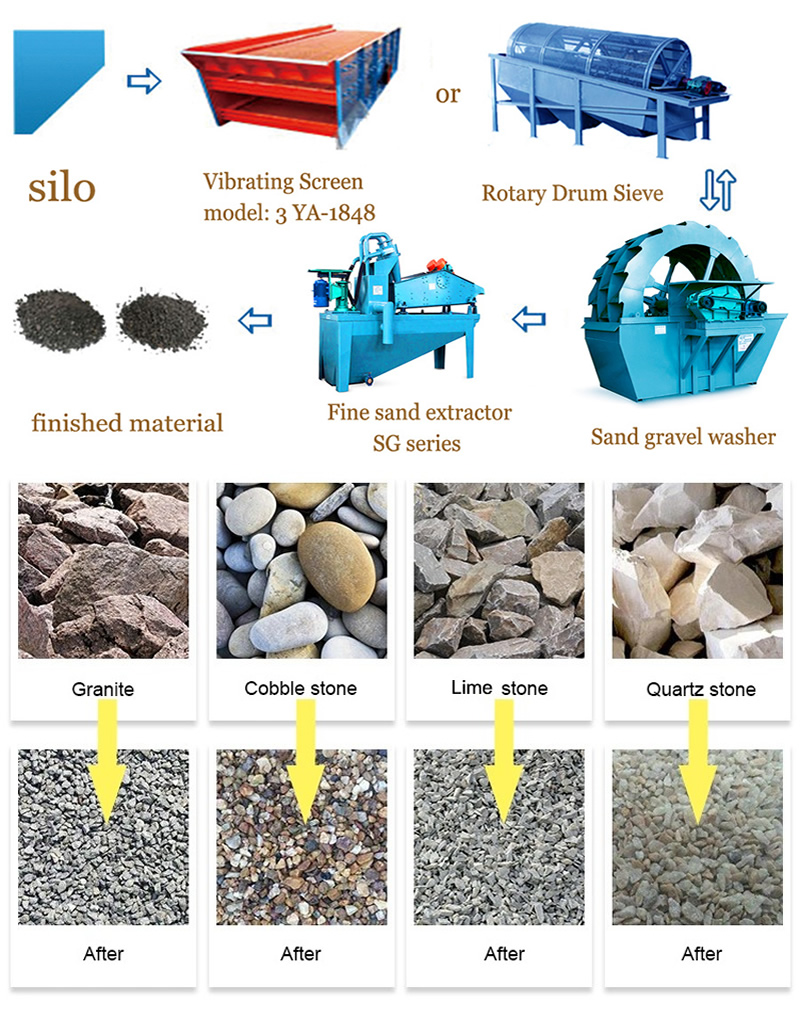

Application

Mobile Compact Trommel Screener Mining
